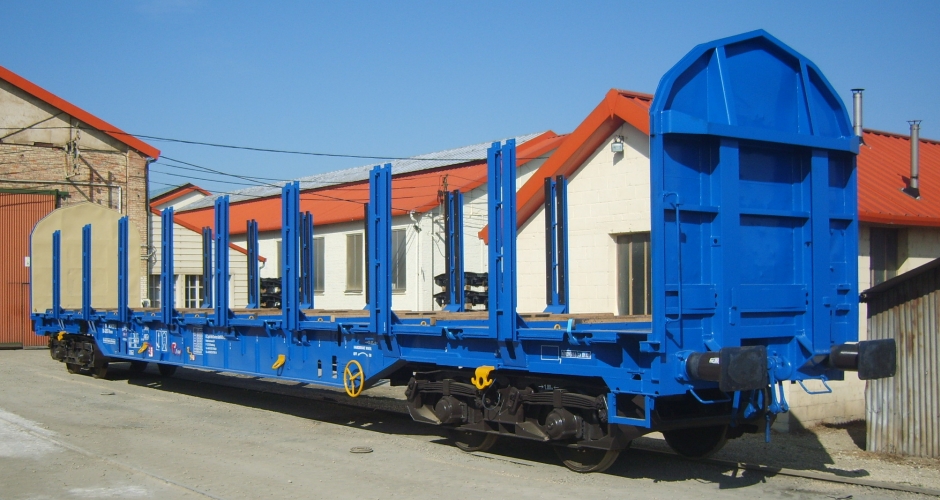

UK_Rfnoos

UK_Rfnoos





Length over buffers:
20 760 mm
Overall height:
3 928 mm
Loading length:
19 500 mm
Loading width:
2 337 mm
Platform height:
1 430 mm
Tare weight:
27 t
Maximum speed loaded:
100 km/h
Maximum speed empty:
120km/h
Minimum curve-radius:
50 m
Payload ( axle load 22.5 t) :
63 t
Number of stanchions:
2 x 8
Number of winches:
2 x 10
Number of crossbeams on the floor:
17
Number of fixation rings:
2 x 9
Number of fixation rings on the end wall:
2 x 4
